The exterior of a built Jimny tells the story of where it has been and where it plans to go. Bull bars, roof racks, snorkels, fender flares and side steps transform the JB74 from a pleasant commuter into something that means business. This guide covers every exterior modification worth considering, in order of practical value.

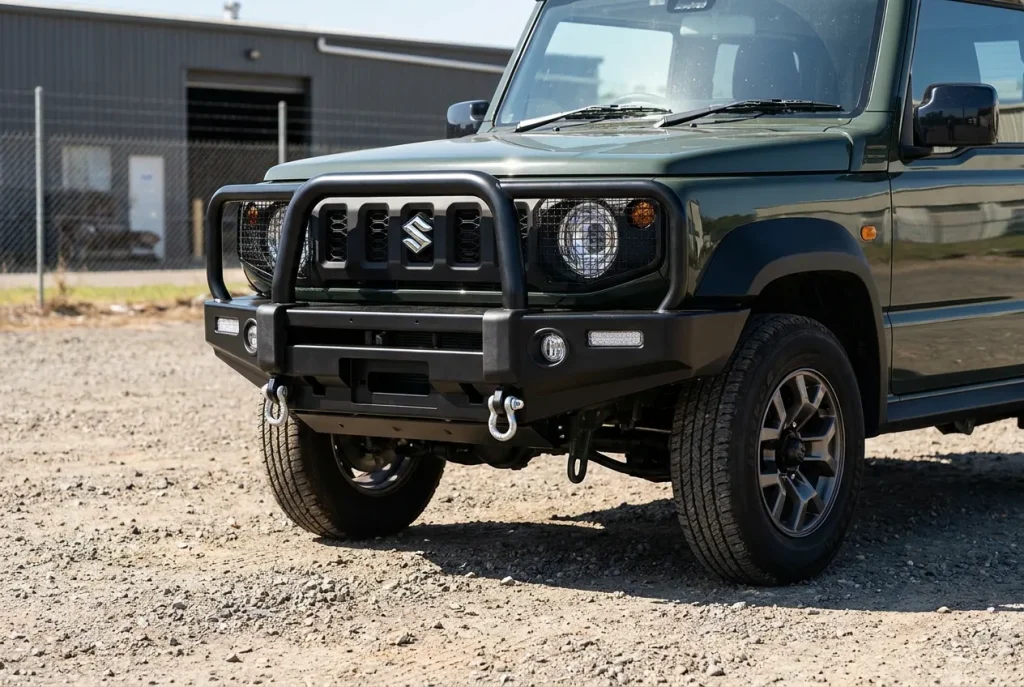

Bull Bars
A bull bar (also called a front bar or nudge bar) serves four purposes on a trail Jimny: it provides rated front recovery points, it creates mounting positions for winches and driving lights, it protects the front of the vehicle from animal strikes (a genuine risk on rural South African roads), and it contributes to the overall trail aesthetic.
Bull Bar Types
| Type | Protection Level | Winch Compatible | Weight | Notes |
|---|---|---|---|---|
| Full-width steel bar | Maximum — covers entire front | Yes (requires winch cradle) | 28–45 kg | Most protection; suits rural/farm use |
| Combination bar (A-bar + cheek plates) | High — sump to bumper line | Yes | 20–32 kg | Popular balance of protection and looks |
| Nudge bar / grille guard | Moderate — grille and headlight area only | No | 8–15 kg | Urban look, limited trail protection |
| Pre-runner / high-clearance bar | Lower coverage, high approach angle | Optional | 18–28 kg | Maximum approach angle; trail-specific |
Bull Bar Brands — SA Market
| Brand | Type | Material | Approx. Price (fitted) | Notes |
|---|---|---|---|---|
| ARB Summit | Full-width | Steel + powder coat | R12,000–R16,000 | Premium — winch cradle available, excellent finish |
| TJM Outback | Full-width | Steel | R9,000–R13,000 | Strong build quality, SA distribution |
| Ironman Raid | Combination | Steel | R7,500–R11,000 | Good value, wide availability |
| Safari (Australian import) | Full-width | Steel | R8,500–R12,000 | Purpose-built for Jimny — group buy option |
| Local fabrication | Custom | Steel | R5,000–R9,000 | Regional 4×4 shops — get references and confirm ratings |
| Ozroo / Chinese import | Various | Steel | R3,500–R6,500 | Variable quality — verify fitting accuracy before buying |
Fit a bull bar with rated recovery rings or D-ring mounts as standard. A bar without rated recovery points defeats one of its primary purposes. Confirm the bar is engineered for the JB74 (not a generic fitment) — sloppy fitment gaps around the lights and grille look poor and indicate compromised rigidity at the chassis mounts.

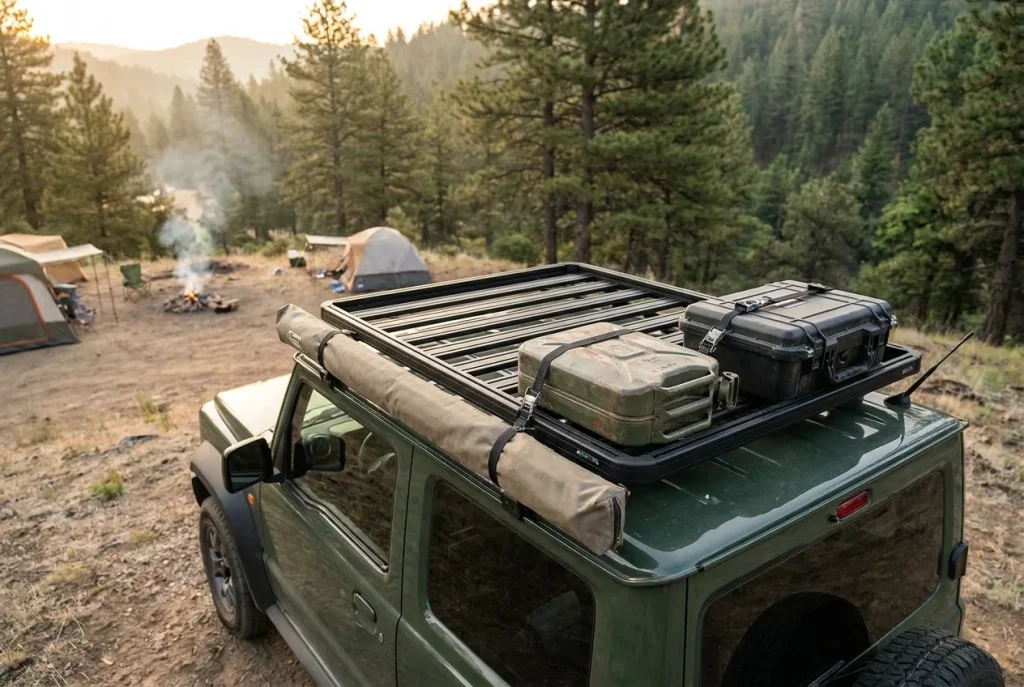

Roof Racks
The Jimny’s small boot becomes much less limiting with a well-chosen roof rack. A platform rack adds recovery gear storage, a rooftop tent platform, light bar mounting, and jerry can capacity without eating into the cabin or boot.
Rack Types
| Type | Load Rating | Best For | Notes |
|---|---|---|---|
| Platform rack (full) | 80–150 kg dynamic | Overland, rooftop tent, multiple loads | Front Runner, Rhino Rack — purpose-built platforms |
| Gutter-mount rail system | 60–100 kg | Lighter loads, flexible configuration | Safari Rack, Thule — bolt-on with accessory rails |
| Expedition rails | 80–120 kg | Side-rail with crossbar system | Flexible — add crossbars as needed |
| Basket rack | 40–80 kg | Recovery boards, light bars, jerry cans | Lower load rating; avoid rooftop tent use |
| Brand | Rack Type | Approx. Price | Notes |
|---|---|---|---|
| Front Runner Slimline II | Full platform — Jimny specific | R7,500–R9,500 | The benchmark SA choice — accessories ecosystem is excellent |
| Rhino Rack Pioneer | Platform | R6,500–R8,500 | Strong build, good SA distribution |
| Safari Rack | Gutter mount rail | R4,500–R6,500 | Simple, light, very popular in SA Jimny community |
| Bush Baby 4×4 | Platform (SA made) | R5,500–R8,000 | Well-made, local warranty support |
| Yakima | Crossbar system | R3,500–R5,500 | Lighter-duty — suitable for camping kit but not rooftop tent |
Dynamic load rating (the weight the rack handles while driving, including vibration) is what matters — not a static weight figure. The Front Runner Slimline II is rated to 75 kg dynamic for the Jimny application — sufficient for a rooftop tent, sleeping gear, and a recovery board set. Do not exceed the dynamic rating regardless of the static spec.
A roof rack is not a replacement for packing strategy. What goes up must be secured — invest in quality straps and cargo nets.
James Crawford, Compact Conqueror

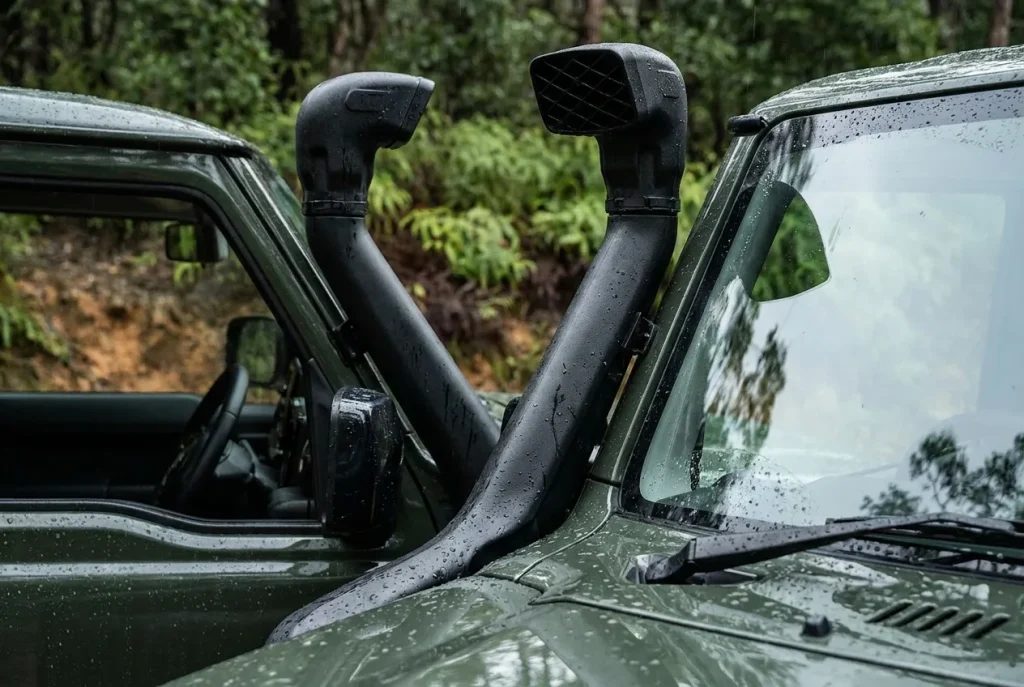

Snorkel
A snorkel raises the engine air intake from the standard air box position (bonnet level) to approximately 1.5 metres above the ground — near the top of the A-pillar. This serves two purposes:
- Increases the safe water wading depth — the intake is now above likely water entry height for most crossings
- Draws cooler, cleaner, less dusty air from above the engine bay — marginal efficiency benefit in dusty conditions
The snorkel does not improve power output on its own. Fitment involves cutting a 90+ mm hole in the front guard panel — this is irreversible on the vehicle body. Confirm quality before committing.
| Brand | Material | SA Availability | Approx. Price (fitted) | Notes |
|---|---|---|---|---|
| Safari Snorkel | LLDPE (roto-moulded plastic) | Good | R2,800–R4,500 | Purpose-built for JB74 — the standard recommendation |
| ARB Snorkel | LLDPE | Good | R3,200–R5,000 | Quality fitment, pre-formed to body line |
| Dobinsons Snorkel | LLDPE | Available (import) | R2,500–R3,800 | Good fit quality for JB74 |
| Generic (import) | ABS plastic | Variable | R800–R1,800 | Fitment quality varies — get body line references before buying |
Fender Flares
Fender flares (also called wheel arch extensions) widen the effective body width over the wheel arches. They serve three purposes: legal compliance when fitting wider tyres that extend beyond the standard body line; protection of the paint from stone chips thrown by wider tyres; and aesthetics — the boxier stance is part of the built Jimny look.
On the JB74 with 215/75R15 tyres at stock height, flares are generally not legally required (the tyre sits within the body width). Fitting 225mm+ tyres may push the tread beyond the body line depending on the wheel offset — measure before ordering flares.
| Brand | Material | Width Added | Notes |
|---|---|---|---|
| OE-style (Jimny specific) | ABS plastic | 30–45 mm per side | Factory look; available in several finishes |
| Rough Country | ABS / fibreglass | 50+ mm per side | Aggressive look; requires body trimming |
| Local panel shop custom | Fibreglass or steel | To spec | Cost-effective; match to body paint at fitment |
Side Steps and Running Boards
The JB74’s increased ride height after a lift makes the step into the cabin noticeably higher, especially for shorter drivers or passengers. Side steps or running boards reduce this gap. Note: these are not rock sliders and are not rated for trail impact loads. Do not use a running board as a jacking point.
Spare Wheel Carriers
The JB74’s tailgate-mounted spare wheel is a design limitation — a standard 215/75R15 AT tyre is heavier than the factory road spare the tailgate was designed for. With a heavier tyre or a full-sized steel wheel, the tailgate hinge pins wear prematurely.
A reinforced spare wheel carrier (aftermarket swing-out or bolt-on reinforcement) addresses this by distributing the weight load through a reinforced hinge assembly or moving the spare off the tailgate entirely. Swing-out carriers are a Tier 3 modification — relevant primarily for overland builds with heavier tyre and wheel combinations.
Frequently Asked Questions
Do I need a bull bar on the Jimny?
A bull bar is not required for trail driving. It becomes a meaningful upgrade when: you drive rural roads where animal strikes are a risk; you want a winch (requires a bar with winch cradle); or you want additional rated front recovery points beyond the factory tow hooks. For urban use, a nudge bar provides a similar aesthetic with less weight.
Will a roof rack affect fuel economy?
Yes. A platform rack adds aerodynamic drag — expect 0.3–0.8 L/100 km increase depending on the rack type and load. An unloaded rail system adds less drag than a fully loaded platform rack. Remove the rack entirely for extended highway trips if fuel economy is a priority.
Is a snorkel worth fitting to the JB74?
If you cross rivers or water obstacles regularly, a snorkel is worthwhile safety equipment. If you mainly drive gravel and dust, the main benefit is marginally cooler, cleaner air intake. The irreversibility of the guard panel cut means it is a committed modification — do not fit it speculatively.
Do fender flares require painting?
Standard ABS plastic flares are available in matte black (textured finish) and do not require painting. Body-colour flares require the piece to be colour-coded to your vehicle at a panel shop. For a built trail vehicle, matte black textured is practical and looks intentional.
Can I fit a full-size spare tyre on the tailgate?
A 215/75R15 AT tyre on a steel 15″ rim weighs approximately 18–22 kg — more than the factory spare the tailgate was designed for. Most owners run this combination without immediate issues, but inspect the tailgate hinge pins annually for wear. A reinforced hinge assembly or aftermarket swing-out carrier extends the tailgate life significantly.
What is the maximum roof load on the JB74?
The JB74’s factory roof load rating is 60 kg static. With an aftermarket rack, follow the rack manufacturer’s dynamic load rating (the figure that accounts for road vibration). The Front Runner Slimline II is rated to 75 kg dynamic for this application. Exceeding dynamic ratings stresses the vehicle roof mounting points and rail welds.
